A fuel efficient automatic transmission fluid recommended for GM, Ford and Toyota transmissions where lighter
viscosity oil is required. Provides the same excellent protection and performance as AMSOIL Signature Series Multi-Vehicle ATF. Recommended for vehicles requiring GM DEXRON® VI, Ford MERCON® LV and SP, Honda DW-1, Nissan Matic-S and Toyota WS fluid specifications.
Package sizes include:
1-Quart Easy Pack & Bottle
1 Gallon
2.5-Gallon Bottle
30-Gallon Drum
55-Gallon Drum
AMSOIL Signature Series Fuel-Efficient Synthetic ATF is recommended for transmissions and other applications that require any of the following specifications:
• Aisin-Warner AW-1
• BMW 83 22 0 142 516, 83 22 2 152 426, 83 22 2 289 720 (ATF3+)
• Chrysler MOPAR* 68157995A, SP-IV
• DSIH 6p805
• Ford MERCON* LV, SP
• GM DEXRON* HP, DEXRON* VI
• Honda/Acura DW-1*, Type 3.0
• Hyundai/Kia SP-IV, SPH-IV, SP-IV-RR, NWS-9638, SP4-M
• JASO 1A-LV; JWS 3324
• Mercedes Benz 236.12, 236.14, 236.15, 236.41
• Mitsubishi SP-IV, ATF J3, ATF-PA
• Nissan Matic-S, Matic-W
• Saab 93 165 147
• Shell M-1375.4, M-1375.5, M-1375.6, M-L 12108
• Toyota WS
• Volvo 31256774
• VW/Audi G 055 005, G 055 162, G 060 162; ZF S671 090 255
Note: Not for use with CVT applications.
AMSOIL Signature Series Fuel-Efficient Synthetic ATF is backward compatible and replaces DEXRON III fluids in older GM automatic transmissions. (DEXRON VI specification supersedes the obsolete DEXRON III in GM vehicles.)
Transmissions in commercial vehicles, SUVs, trucks and vans; particularly those used for hauling or towing are subjected to severe-service operation and increased heat. Elevated temperatures cause fluids to break down, allowing damaging metal-to-metal contact and the formation of sludge and deposits. The problem is worse in modern transmissions with more gears, clutch packs and narrow oil passages that require clean, high-quality fluid to achieve maximum performance and life.
AMSOIL Signature Series Synthetic Automatic Transmission Fluid is specifically formulated to withstand the rigors of heavy towing, elevated temperatures and challenging terrain. It remains fluid in
sub-zero temperatures and provides reserve protection during heavy use and even abuse.

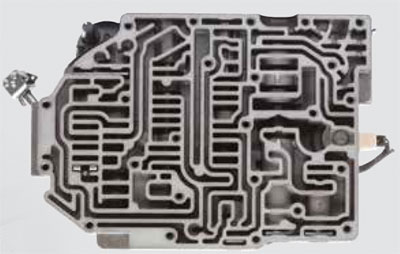

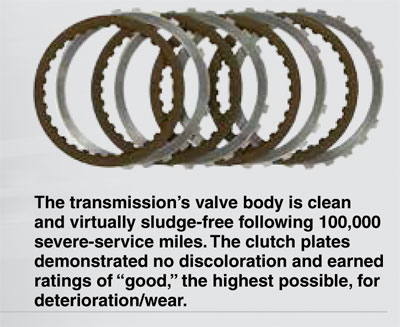

To demonstrate its effectiveness in severe service, Signature Series Multi-Vehicle Synthetic ATF was installed in Las Vegas taxi cabs. The vehicles routinely encountered demanding stop-and-go driving loaded with passengers and cargo, while the desert environment presented extremely hot ambient temperatures, placing enormous strain on the fluid. Following 180,000 miles, a transmission was selected for analysis. The Aluminum Beaker Oxidation Test (ABOT) is an industry standardized test used to determine a transmission fluid's oxidation resistance, which is a good indicator of its service life. Testing by an independent, third-party lab revealed that after 180,000 miles in severe service, Signature Series Multi-Vehicle Synthetic ATF resisted oxidation longer than required for new fluid to meet the Chrysler ATF+4 specification (see graph). Internal components, including the valve body and clutch plates (pictured), were virtually free of damaging sludge, deposits and wear, confirming the lubricant's high level of protection for severe-service applications.
Signature Series Synthetic ATF is formulated with high concentrations of antioxidants, making it naturally heat resistant. It provides outstanding protection against sludge and varnish deposits that clog narrow oil passages and contribute to clutch glazing. After 180,000 miles in severe service, fluid analysis revealed Signature Series Multi-Vehicle Synthetic ATF contained 83 percent of its original oxidation inhibitors, proving its long-lasting resistance to thermal breakdown.
Varying speeds and loads causes torque multiplication and extreme stress on gears and bearings. AMSOIL formulated Signature Series Synthetic ATF with high film strength and premium anti-wear/extreme-pressure additives to help prevent wear during severe service. In the industry-standard FZG Gear Wear Test, Signature Series Multi-Vehicle Synthetic ATF that had been used for 180,000 severe-service miles achieved a "Pass" at stage 12 - the highest stage. The results exceeded the Ford MERCON V and Chrysler ATF+4 specifications for new fluid, demonstrating the lubricant's long-lasting wear protection.
Cold, thick automatic transmission fluid lengthens shift times and reduces fuel economy. Signature Series Synthetic ATF is wax-free and delivers extraordinary cold-flow properties. It helps improve shift response, energy efficiency and warm-up times.
Today's transmissions are smaller and must withstand higher horsepower and torque while delivering smoother shifts, all with longer fluid life recommendations. AMSOIL Signature Series Synthetic ATF is formulated with friction modifier additives that deliver outstanding clutch-holding capacity (static friction), torque-transfer ability (dynamic friction) and anti-shudder properties (slipping torque-converter clutches). Analysis reveals that after 180,000 miles in severe service, Signature Series Multi-Vehicle Synthetic ATF provides nearly identical friction properties as new fluid for smooth, reliable shifts.
Normal Service: Follow the vehicle manufacturer's normal-service drain interval.
Severe Service: Double the vehicle manufacturer's severe-service drain interval.
Change at the vehicle manufacturer's recommended drain interval outside U.S. and Canada.
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS).
Click here to view the MSDS Data Sheet for AMSOIL ATL.
Keep out of the reach of children. Don't pollute. Return used oil to collection centers.
| TYPICAL TECHNICAL PROPERTIES AMSOIL Signature Series Fuel-Efficient Synthetic ATF | ATL |
| Kinematic Viscosity @ 100°C, cSt (ASTM D 445) | 6.3 |
| Kinematic Viscosity @ 40°C, cSt (ASTM D 445) | 30.8 |
| Viscosity Index (ASTM D 2270) | 159 |
| Pour Point °C (°F) (ASTM D 97) | -65(-85) |
| Flash Point °C (°F) (ASTM D 92) | 224 (435) |
| Four Ball Wear Test @ 75°C, 1200 rpm, 40 kg, 1 hr, Scar, mm (ASTM D 4172) | 0.39 |
| Brookfield Viscosity, cP (ASTM D 2983) | 7676 |
Product Name: Signature Series Fuel-Efficient Synthetic Automatic Transmission Fluid (ATL)
Current Rating: 4.38out of 5 stars
Votes & Reviews: 8 vote(s) and 2 user reviews.
Re: Hyundai Elentra
Actually David, with the switch to AMSOIL ATL, customers often experience better fuel economy. It is not uncommon. However, based on your description of old fluid that was drained, it definitely sounds as though it was beyond its useful life.
Replied by Tech Admin
Reviewed by Jason Capp:
I own a 2011 Honda Accord V6. I decided to drain and fill ATF as part of annual maintenance.
A total transmission flush & fill can get very expensive. Since Amsoil ATF is compatible with Honda fluids, I decided to drain the ATF from the transmission drain plug (about 1 gallon came out) and fill it up with Amsoil.
I will do this every year when I do my oil change to keep the ATF fresh. This time when I drained the oil, it had a dark tint to it but as Amsoil concentration increases, the oil should look more red than black.
After the ATF drain and fill, I noticed the shifts to be crisp.
Canada
United States
Reviewed by David:
Hyundai Elentra
I finally installed the tranny cooler on the Elantra and flushed the old fluid out with lots of crap, no filter to change, yes, odd, and installed your stupidly simple awesome AMSOIL product. I noticed the quicker shifts and higher rpms, and the girls are noticing better gas mileage on the highway. I know, it should make no difference, but it does, they are getting 45mpg or better, on their trips to London and back..
So, another big thank you from a HAPPY HAPPY customer..
